Generic Linux Details

Corellium Atlas provides 4 board model(s) in the Generic Linux family.

Generic Linux​

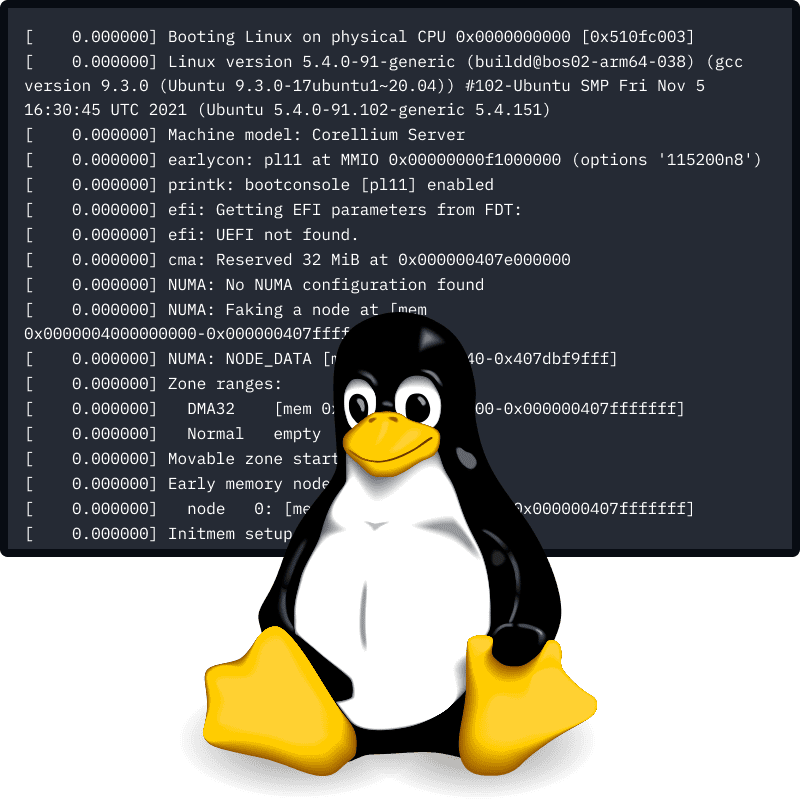

Board Image

  • Generic Linux is generally available.
  • Does not support CoreTrace

Generic Linux Configuration​

  • Defaults to 2 cores configurable between 1 and 16 with a step size of 1.
  • Defaults to 2048 KB of ram configurable between 1024 and 32768 with a step size of 1024.
  • Supports changing CPU/RAM allocations on reboot.
  • Does not support setting custom options before device boot.
  • Has default boot args "earlycon=pl011,0xf1000000,115200n8 console=ttyAMA0,115200n8 rw rootwait root=/dev/vda".
  • Supports setting boot args.

Generic Linux Storage​

  • It has 1 storage partition:
    • vdisk0
      • default size: 14.9 GB.
      • This partition is required in firmware .zip files.

Generic Linux I/O​

  • Does not have a GUI.
  • It supports ssh with username: user password: password.

Generic Linux (UI)​

Board Image

  • Generic Linux (UI) is generally available.
  • Does not support CoreTrace

Generic Linux (UI) Configuration​

  • Defaults to 2 cores configurable between 1 and 16 with a step size of 1.
  • Defaults to 2048 KB of ram configurable between 1024 and 32768 with a step size of 1024.
  • Supports changing CPU/RAM allocations on reboot.
  • Does not support setting custom options before device boot.
  • Has default boot args "earlycon=pl011,0xf1000000,115200n8 console=ttyAMA0,115200n8 rw rootwait root=/dev/vda".
  • Supports setting boot args.

Generic Linux (UI) Storage​

  • It has 1 storage partition:
    • vdisk0
      • default size: 14.9 GB.
      • This partition is required in firmware .zip files.

Generic Linux (UI) I/O​

  • It supports ssh with username: user password: password.

Generic Linux with Hypervisor Support​

Board Image

  • Generic Linux with Hypervisor Support is generally available.
  • Does not support CoreTrace

Generic Linux with Hypervisor Support Configuration​

  • Defaults to 2 cores configurable between 1 and 16 with a step size of 1.
  • Defaults to 2048 KB of ram configurable between 1024 and 32768 with a step size of 1024.
  • Supports changing CPU/RAM allocations on reboot.
  • Does not support setting custom options before device boot.
  • Has default boot args "earlycon=pl011,0xf1000000,115200n8 console=ttyAMA0,115200n8 rw rootwait root=/dev/vda".
  • Supports setting boot args.

Generic Linux with Hypervisor Support Storage​

  • It has 1 storage partition:
    • vdisk0
      • default size: 14.9 GB.
      • This partition is required in firmware .zip files.

Generic Linux with Hypervisor Support I/O​

  • Does not have a GUI.
  • It supports ssh with username: user password: password.

Generic Linux with Hypervisor Support (UI)​

Board Image

  • Generic Linux with Hypervisor Support (UI) is generally available.
  • Does not support CoreTrace

Generic Linux with Hypervisor Support (UI) Configuration​

  • Defaults to 2 cores configurable between 1 and 16 with a step size of 1.
  • Defaults to 2048 KB of ram configurable between 1024 and 32768 with a step size of 1024.
  • Supports changing CPU/RAM allocations on reboot.
  • Does not support setting custom options before device boot.
  • Has default boot args "earlycon=pl011,0xf1000000,115200n8 console=ttyAMA0,115200n8 rw rootwait root=/dev/vda".
  • Supports setting boot args.

Generic Linux with Hypervisor Support (UI) Storage​

  • It has 1 storage partition:
    • vdisk0
      • default size: 14.9 GB.
      • This partition is required in firmware .zip files.

Generic Linux with Hypervisor Support (UI) I/O​

  • It supports ssh with username: user password: password.
