i.MX 93 Details

Corellium Atlas provides 3 board model(s) in the i.MX 93 family.

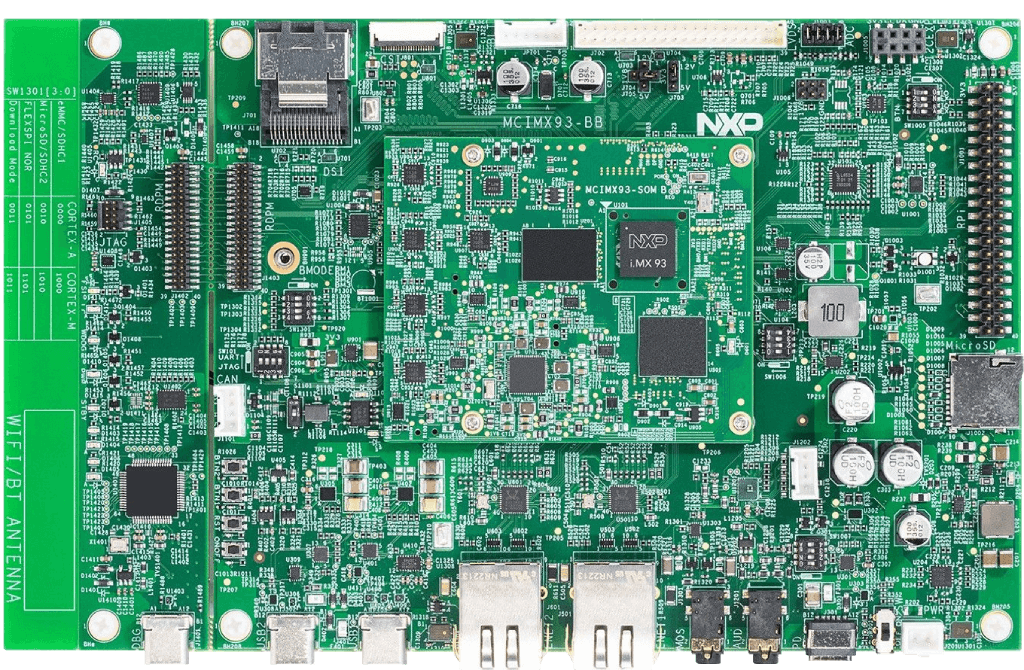

i.MX 93

• i.MX 93 is generally available.
• Support CoreTrace
• Supports connecting with the GNU Project Debugger.
• Supports taking snapshots while the device is running.

i.MX 93 Configuration

• Defaults to 3 cores.
• Defaults to 3072 KB of ram.
• Supports changing CPU/RAM allocations on reboot.
• Supports setting custom options before device boot.
• Has default boot args "console=ttyLP0,115200 earlycon= root=/dev/mmcblk0p2".
• Supports setting boot args.
• Supports uploading a custom device tree.
• Supports uploading custom firmware.

i.MX 93 Storage

• It has 3 storage partitions:
  • nand
    • default size: 14.9 GB.
    • This partition is required in firmware .zip files.
    • This partition can be uploaded in advanced settings where it is called eMMC.
  • bbnsm
    • default size: 1.0 KB.
    • This partition is required in firmware .zip files.
  • efiv
    • default size: 64.0 KB.
    • This partition is optional in firmware .zip files and will be filled with 0xff if not present.

i.MX 93 I/O

• It supports ssh with username: root.
• Supports camera input.
• Support video file input.
• Supports audio input.
• Has buttons/leds/switches in the UI.
• Supports vMMIO.
• It has CoreModel interfaces for ports:
  • iomuxc: Protocol: gpio 108 addresses.
  • pcal6524: Protocol: gpio 24 addresses.
  • can0: Protocol: can.
  • can1: Protocol: can.
• It has 1 serial ports available via dropdown named:
  • NULL named Default of type console
  • sys-cons named Cortex-M Console of type console.

i.MX 93 with Hypervisor support

• i.MX 93 with Hypervisor support is generally available.
• Supports connecting with the GNU Project Debugger.
• Supports taking snapshots while the device is running.

i.MX 93 with Hypervisor support Configuration

• Defaults to 3 cores.
• Defaults to 3072 KB of ram.
• Supports changing CPU/RAM allocations on reboot.
• Supports setting custom options before device boot.
• Has default boot args "console=ttyLP0,115200 earlycon= root=/dev/mmcblk0p2".
• Supports setting boot args.
• Supports uploading a custom device tree.
• Supports uploading custom firmware.

i.MX 93 with Hypervisor support Storage

• It has 3 storage partitions:
  • nand
    • default size: 14.9 GB.
    • This partition is required in firmware .zip files.
    • This partition can be uploaded in advanced settings where it is called eMMC.
  • bbnsm
    • default size: 1.0 KB.
    • This partition is required in firmware .zip files.
  • efiv
    • default size: 64.0 KB.
    • This partition is optional in firmware .zip files and will be filled with 0xff if not present.

i.MX 93 with Hypervisor support I/O

• It supports ssh with username: root.
• Supports camera input.
• Support video file input.
• Supports audio input.
• Has buttons/leds/switches in the UI.
• Supports vMMIO.
• It has CoreModel interfaces for ports:
  • iomuxc: Protocol: gpio 108 addresses.
  • pcal6524: Protocol: gpio 24 addresses.
  • can0: Protocol: can.
  • can1: Protocol: can.
• It has 1 serial ports available via dropdown named:
  • NULL named Default of type console
  • sys-cons named Cortex-M Console of type console.

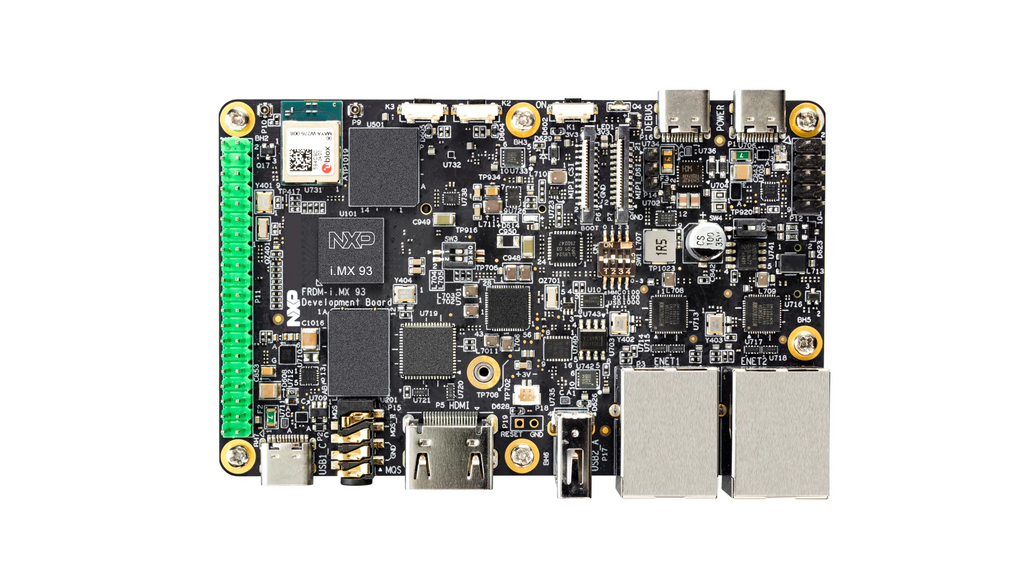

i.MX 93 FRDM with Hypervisor support

• i.MX 93 FRDM with Hypervisor support is generally available.
• Supports connecting with the GNU Project Debugger.
• Supports taking snapshots while the device is running.

i.MX 93 FRDM with Hypervisor support Configuration

• Defaults to 3 cores.
• Defaults to 3072 KB of ram.
• Supports changing CPU/RAM allocations on reboot.
• Supports setting custom options before device boot.
• Has default boot args "console=ttyLP0,115200 earlycon= root=/dev/mmcblk0p2".
• Supports setting boot args.
• Supports uploading a custom device tree.
• Supports uploading custom firmware.

i.MX 93 FRDM with Hypervisor support Storage

• It has 4 storage partitions:
  • emmc
    • default size: 14.9 GB.
    • This partition is required in firmware .zip files.
    • This partition can be uploaded in advanced settings where it is called eMMC.
  • eeprom
    • default size: 32.0 KB.
    • This partition is required in firmware .zip files.
    • This partition can be uploaded in advanced settings where it is called EEPROM.
  • bbnsm
    • default size: 1.0 KB.
    • This partition is required in firmware .zip files.
  • efiv
    • default size: 64.0 KB.
    • This partition is optional in firmware .zip files and will be filled with 0xff if not present.

i.MX 93 FRDM with Hypervisor support I/O

• It supports ssh with username: root.
• Supports camera input.
• Support video file input.
• Supports audio input.
• Has buttons/leds/switches in the UI.
• Supports vMMIO.
• It has CoreModel interfaces for ports:
  • iomuxc: Protocol: gpio 108 addresses.
  • pcal6524: Protocol: gpio 24 addresses.
  • can0: Protocol: can.
  • can1: Protocol: can.
• It has 1 serial ports available via dropdown named:
  • NULL named Default of type console
  • sys-cons named Cortex-M Console of type console.
