S32K388 Details

Corellium Atlas provides 4 board model(s) in the S32K388 family.

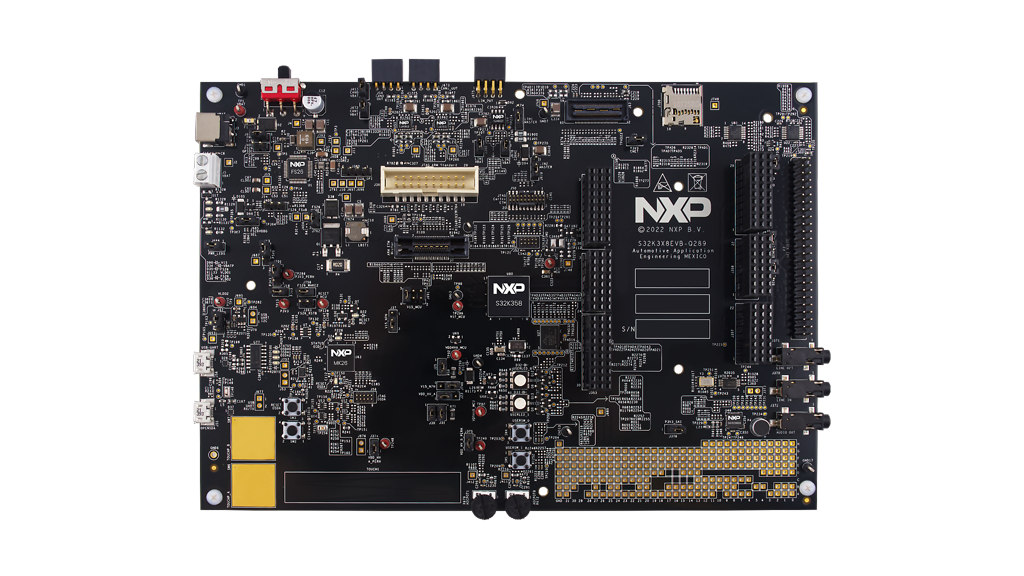

S32K3X8EVB-Q289​

Board Image

  • S32K3X8EVB-Q289 may require additional licensing for S32K.
  • Supports connecting with the GNU Project Debugger.

S32K3X8EVB-Q289 Configuration​

  • Defaults to 3 cores.
  • Defaults to 1152 KB of ram.
  • Supports setting custom options before device boot.

S32K3X8EVB-Q289 Storage​

  • It has 5 storage partitions:
    • utest
      • default size: 8.0 KB.
      • This partition is optional in firmware .zip files and will be filled with 0xff if not present.
      • This partition can be uploaded in advanced settings where it is called UTEST.
    • pflash
      • default size: 8.0 MB.
      • This partition is optional in firmware .zip files and will be filled with 0xff if not present.
      • This partition can be uploaded in advanced settings where it is called PFlash.
    • dflash
      • default size: 128.0 KB.
      • This partition is optional in firmware .zip files and will be filled with 0xff if not present.
      • This partition can be uploaded in advanced settings where it is called DFlash.
    • hse_nvm
      • default size: 128.0 KB.
      • This partition is optional in firmware .zip files and will be filled with 0xff if not present.
      • This partition can be uploaded in advanced settings where it is called HSE NVM.
    • sdcard
      • default size: 1.0 GB.
      • This partition is optional in firmware .zip files and will be filled with 0xff if not present.
      • This partition can be uploaded in advanced settings where it is called SD Card.

S32K3X8EVB-Q289 I/O​

  • Supports audio input.
  • Supports vMMIO.
  • It has 16 serial ports available via dropdown named:
    • uart0-cons named UART-40328000 of type console.
    • uart1-cons named UART-4032c000 of type console.
    • uart2-cons named UART-40330000 of type console.
    • uart3-cons named UART-40334000 of type console.
    • uart4-cons named UART-40338000 of type console.
    • uart5-cons named UART-4033c000 of type console.
    • uart6-cons named UART-40340000 of type console.
    • uart7-cons named UART-40344000 of type console.
    • uart8-cons named UART-4048c000 of type console.
    • uart9-cons named UART-40490000 of type console.
    • uart10-cons named UART-40494000 of type console.
    • uart11-cons named UART-40498000 of type console.
    • uart12-cons named UART-4049c000 of type console.
    • uart13-cons named UART-404a0000 of type console.
    • uart14-cons named UART-404a4000 of type console.
    • uart15-cons named UART-404a8000 of type console.

S32K388 SoC​

Board Image

  • S32K388 SoC may require additional licensing for S32K.
  • Supports connecting with the GNU Project Debugger.

S32K388 SoC Configuration​

  • Defaults to 4 cores.
  • Defaults to 1152 KB of ram.
  • Supports setting custom options before device boot.

S32K388 SoC Storage​

  • It has 5 storage partitions:
    • utest
      • default size: 8.0 KB.
      • This partition is optional in firmware .zip files and will be filled with 0xff if not present.
      • This partition can be uploaded in advanced settings where it is called UTEST.
    • pflash
      • default size: 8.0 MB.
      • This partition is optional in firmware .zip files and will be filled with 0xff if not present.
      • This partition can be uploaded in advanced settings where it is called PFlash.
    • dflash
      • default size: 128.0 KB.
      • This partition is optional in firmware .zip files and will be filled with 0xff if not present.
      • This partition can be uploaded in advanced settings where it is called DFlash.
    • hse_nvm
      • default size: 128.0 KB.
      • This partition is optional in firmware .zip files and will be filled with 0xff if not present.
      • This partition can be uploaded in advanced settings where it is called HSE NVM.
    • sdcard
      • default size: 1.0 GB.
      • This partition is optional in firmware .zip files and will be filled with 0xff if not present.
      • This partition can be uploaded in advanced settings where it is called SD Card.

S32K388 SoC I/O​

  • Supports audio input.
  • Supports vMMIO.
  • It has 16 serial ports available via dropdown named:
    • uart0-cons named UART-40328000 of type console.
    • uart1-cons named UART-4032c000 of type console.
    • uart2-cons named UART-40330000 of type console.
    • uart3-cons named UART-40334000 of type console.
    • uart4-cons named UART-40338000 of type console.
    • uart5-cons named UART-4033c000 of type console.
    • uart6-cons named UART-40340000 of type console.
    • uart7-cons named UART-40344000 of type console.
    • uart8-cons named UART-4048c000 of type console.
    • uart9-cons named UART-40490000 of type console.
    • uart10-cons named UART-40494000 of type console.
    • uart11-cons named UART-40498000 of type console.
    • uart12-cons named UART-4049c000 of type console.
    • uart13-cons named UART-404a0000 of type console.
    • uart14-cons named UART-404a4000 of type console.
    • uart15-cons named UART-404a8000 of type console.

S32K388​

Board Image

  • S32K388 may require additional licensing for S32K.
  • Supports connecting with the GNU Project Debugger.

S32K388 Configuration​

  • Defaults to 4 cores.
  • Defaults to 1152 KB of ram.
  • Supports setting custom options before device boot.

S32K388 Storage​

  • It has 5 storage partitions:
    • utest
      • default size: 8.0 KB.
      • This partition is optional in firmware .zip files and will be filled with 0xff if not present.
      • This partition can be uploaded in advanced settings where it is called UTEST.
    • pflash
      • default size: 8.0 MB.
      • This partition is optional in firmware .zip files and will be filled with 0xff if not present.
      • This partition can be uploaded in advanced settings where it is called PFlash.
    • dflash
      • default size: 128.0 KB.
      • This partition is optional in firmware .zip files and will be filled with 0xff if not present.
      • This partition can be uploaded in advanced settings where it is called DFlash.
    • hse_nvm
      • default size: 128.0 KB.
      • This partition is optional in firmware .zip files and will be filled with 0xff if not present.
      • This partition can be uploaded in advanced settings where it is called HSE NVM.
    • sdcard
      • default size: 1.0 GB.
      • This partition is optional in firmware .zip files and will be filled with 0xff if not present.
      • This partition can be uploaded in advanced settings where it is called SD Card.

S32K388 I/O​

  • Supports audio input.
  • Supports vMMIO.
  • It has 16 serial ports available via dropdown named:
    • uart0-cons named UART-40328000 of type console.
    • uart1-cons named UART-4032c000 of type console.
    • uart2-cons named UART-40330000 of type console.
    • uart3-cons named UART-40334000 of type console.
    • uart4-cons named UART-40338000 of type console.
    • uart5-cons named UART-4033c000 of type console.
    • uart6-cons named UART-40340000 of type console.
    • uart7-cons named UART-40344000 of type console.
    • uart8-cons named UART-4048c000 of type console.
    • uart9-cons named UART-40490000 of type console.
    • uart10-cons named UART-40494000 of type console.
    • uart11-cons named UART-40498000 of type console.
    • uart12-cons named UART-4049c000 of type console.
    • uart13-cons named UART-404a0000 of type console.
    • uart14-cons named UART-404a4000 of type console.
    • uart15-cons named UART-404a8000 of type console.

S32K344 SoC​

Board Image

  • S32K344 SoC may require additional licensing for S32K.
  • Supports connecting with the GNU Project Debugger.

S32K344 SoC Configuration​

  • Defaults to 2 cores.
  • Defaults to 512 KB of ram.
  • Supports setting custom options before device boot.

S32K344 SoC Storage​

  • It has 5 storage partitions:
    • utest
      • default size: 8.0 KB.
      • This partition is optional in firmware .zip files and will be filled with 0xff if not present.
      • This partition can be uploaded in advanced settings where it is called UTEST.
    • pflash
      • default size: 4.0 MB.
      • This partition is optional in firmware .zip files and will be filled with 0xff if not present.
      • This partition can be uploaded in advanced settings where it is called PFlash.
    • dflash
      • default size: 128.0 KB.
      • This partition is optional in firmware .zip files and will be filled with 0xff if not present.
      • This partition can be uploaded in advanced settings where it is called DFlash.
    • hse_nvm
      • default size: 128.0 KB.
      • This partition is optional in firmware .zip files and will be filled with 0xff if not present.
      • This partition can be uploaded in advanced settings where it is called HSE NVM.
    • sdcard
      • default size: 1.0 GB.
      • This partition is optional in firmware .zip files and will be filled with 0xff if not present.
      • This partition can be uploaded in advanced settings where it is called SD Card.

S32K344 SoC I/O​

  • Supports audio input.
  • Supports vMMIO.
  • It has 16 serial ports available via dropdown named:
    • uart0-cons named UART-40328000 of type console.
    • uart1-cons named UART-4032c000 of type console.
    • uart2-cons named UART-40330000 of type console.
    • uart3-cons named UART-40334000 of type console.
    • uart4-cons named UART-40338000 of type console.
    • uart5-cons named UART-4033c000 of type console.
    • uart6-cons named UART-40340000 of type console.
    • uart7-cons named UART-40344000 of type console.
    • uart8-cons named UART-4048c000 of type console.
    • uart9-cons named UART-40490000 of type console.
    • uart10-cons named UART-40494000 of type console.
    • uart11-cons named UART-40498000 of type console.
    • uart12-cons named UART-4049c000 of type console.
    • uart13-cons named UART-404a0000 of type console.
    • uart14-cons named UART-404a4000 of type console.
    • uart15-cons named UART-404a8000 of type console.
